    CSS HUNLEY

    nigele(ADMIN)2
    nigele(ADMIN)2
    AMS Chairman


    Posts : 1107
    Join date : 2010-11-06
    Age : 68
    Location : Braintree, Essex

    CSS HUNLEY - Page 3 Empty Re: CSS HUNLEY

    Post  nigele(ADMIN)2 Fri Sep 28, 2012 4:11 pm

    CSS HUNLEY - Page 3 100_1818
    nigele(ADMIN)2
    nigele(ADMIN)2
    AMS Chairman


    Posts : 1107
    Join date : 2010-11-06
    Age : 68
    Location : Braintree, Essex

    CSS HUNLEY - Page 3 Empty Re: CSS HUNLEY

    Post  nigele(ADMIN)2 Fri Sep 28, 2012 4:13 pm

    CSS HUNLEY - Page 3 100_1819
    nigele(ADMIN)2
    nigele(ADMIN)2
    AMS Chairman


    Posts : 1107
    Join date : 2010-11-06
    Age : 68
    Location : Braintree, Essex

    CSS HUNLEY - Page 3 Empty Re: CSS HUNLEY

    Post  nigele(ADMIN)2 Fri Sep 28, 2012 4:14 pm

    CSS HUNLEY - Page 3 100_1820

    Second side gel coated.


    Last edited by nigele on Mon Oct 01, 2012 9:39 am; edited 1 time in total
    nigele(ADMIN)2
    nigele(ADMIN)2
    AMS Chairman


    Posts : 1107
    Join date : 2010-11-06
    Age : 68
    Location : Braintree, Essex

    CSS HUNLEY - Page 3 Empty Re: CSS HUNLEY

    Post  nigele(ADMIN)2 Fri Sep 28, 2012 4:16 pm

    CSS HUNLEY - Page 3 100_1821
    profesorul
    profesorul
    Guest


    Posts : 386
    Join date : 2011-07-03
    Age : 57
    Location : Bucuresti, ROMANIA

    CSS HUNLEY - Page 3 Empty Re: CSS HUNLEY

    Post  profesorul Sat Sep 29, 2012 6:21 pm

    HI,
    I am not familiarized with these technique.
    What's GEL COAT for?,
    You make it red or is his color?,
    MARIUS
    nigele(ADMIN)2
    nigele(ADMIN)2
    AMS Chairman


    Posts : 1107
    Join date : 2010-11-06
    Age : 68
    Location : Braintree, Essex

    CSS HUNLEY - Page 3 Empty Re: CSS HUNLEY

    Post  nigele(ADMIN)2 Sat Sep 29, 2012 9:38 pm

    CSS HUNLEY - Page 3 100_1822

    The mould's awaiting triming.
    nigele(ADMIN)2
    nigele(ADMIN)2
    AMS Chairman


    Posts : 1107
    Join date : 2010-11-06
    Age : 68
    Location : Braintree, Essex

    CSS HUNLEY - Page 3 Empty Re: CSS HUNLEY

    Post  nigele(ADMIN)2 Sat Sep 29, 2012 9:40 pm

    CSS HUNLEY - Page 3 100_1823
    nigele(ADMIN)2
    nigele(ADMIN)2
    AMS Chairman


    Posts : 1107
    Join date : 2010-11-06
    Age : 68
    Location : Braintree, Essex

    CSS HUNLEY - Page 3 Empty Re: CSS HUNLEY

    Post  nigele(ADMIN)2 Sat Sep 29, 2012 9:41 pm

    CSS HUNLEY - Page 3 100_1824
    david f
    david f
    AMS Treasurer


    Posts : 2216
    Join date : 2010-11-10
    Age : 71
    Location : Cumbria

    CSS HUNLEY - Page 3 Empty Re: CSS HUNLEY

    Post  david f Mon Oct 01, 2012 8:27 am

    Looking very good , Nigel!

    David
    nigele(ADMIN)2
    nigele(ADMIN)2
    AMS Chairman


    Posts : 1107
    Join date : 2010-11-06
    Age : 68
    Location : Braintree, Essex

    CSS HUNLEY - Page 3 Empty Re: CSS HUNLEY

    Post  nigele(ADMIN)2 Mon Oct 01, 2012 9:19 pm

    profesorul wrote:HI,
    I am not familiarized with these technique.
    What's GEL COAT for?,
    You make it red or is his color?,
    MARIUS

    Hi Marius,
    Gel is a thick resin about the same as syrup,it is used as the surface you see on the finished product,it remains tacky on the air side and full dryes on the surface that is in contact with the mould or patten,this is to help it bond to the matt it also stops the patten of the matt showing through the surface,it can be bought in color but I buy it clear and color it myself,I colored it red in this case as the boat will be colored black this helps to make sure the mould has been covered with the black gel properly as the red is clearly visable through the black if you have missed a bit.
    nigele(ADMIN)2
    nigele(ADMIN)2
    AMS Chairman


    Posts : 1107
    Join date : 2010-11-06
    Age : 68
    Location : Braintree, Essex

    CSS HUNLEY - Page 3 Empty Re: CSS HUNLEY

    Post  nigele(ADMIN)2 Mon Oct 01, 2012 9:22 pm

    CSS HUNLEY - Page 3 100_1825

    The finished moulds covered in black gel coat awaiting matt.
    nigele(ADMIN)2
    nigele(ADMIN)2
    AMS Chairman


    Posts : 1107
    Join date : 2010-11-06
    Age : 68
    Location : Braintree, Essex

    CSS HUNLEY - Page 3 Empty Re: CSS HUNLEY

    Post  nigele(ADMIN)2 Mon Oct 01, 2012 9:26 pm

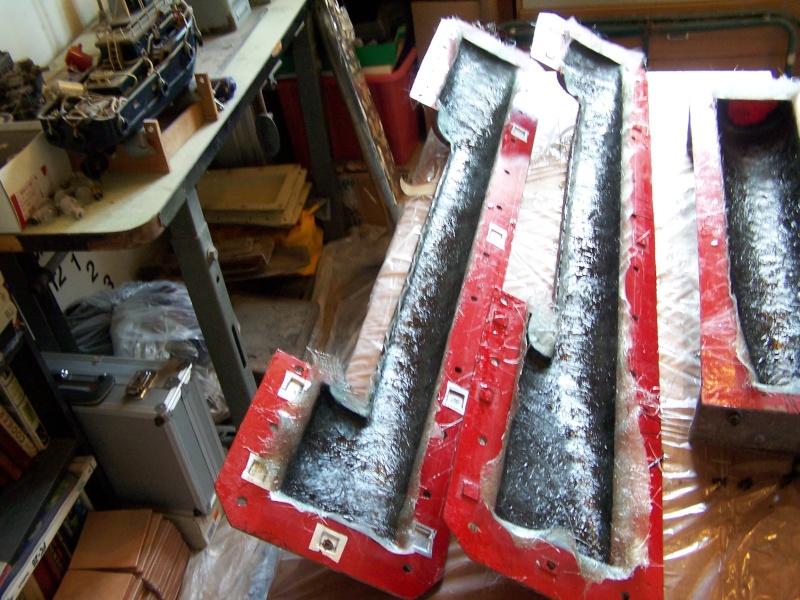

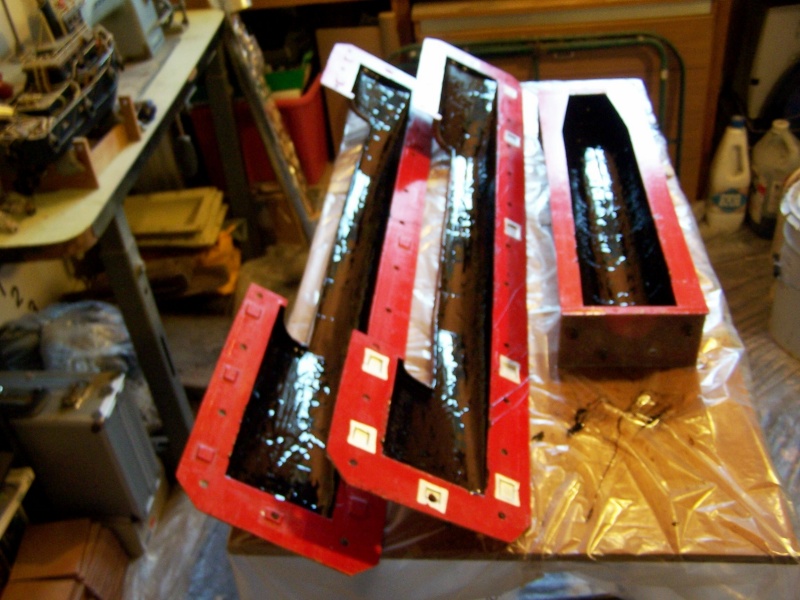

    CSS HUNLEY - Page 3 100_1826

    Another view wit gel on.
    nigele(ADMIN)2
    nigele(ADMIN)2
    AMS Chairman


    Posts : 1107
    Join date : 2010-11-06
    Age : 68
    Location : Braintree, Essex

    CSS HUNLEY - Page 3 Empty Re: CSS HUNLEY

    Post  nigele(ADMIN)2 Mon Oct 01, 2012 9:28 pm

    CSS HUNLEY - Page 3 100_1827
    avatar
    Tom(ADMIN)
    AMS Forum Owner


    Posts : 3012
    Join date : 2010-11-05
    Age : 62
    Location : Nevada, USA

    CSS HUNLEY - Page 3 Empty Re: CSS HUNLEY

    Post  Tom(ADMIN) Mon Oct 01, 2012 9:30 pm

    Very nice work, mate...very impressive.
    nigele(ADMIN)2
    nigele(ADMIN)2
    AMS Chairman


    Posts : 1107
    Join date : 2010-11-06
    Age : 68
    Location : Braintree, Essex

    CSS HUNLEY - Page 3 Empty Re: CSS HUNLEY

    Post  nigele(ADMIN)2 Mon Oct 01, 2012 9:31 pm

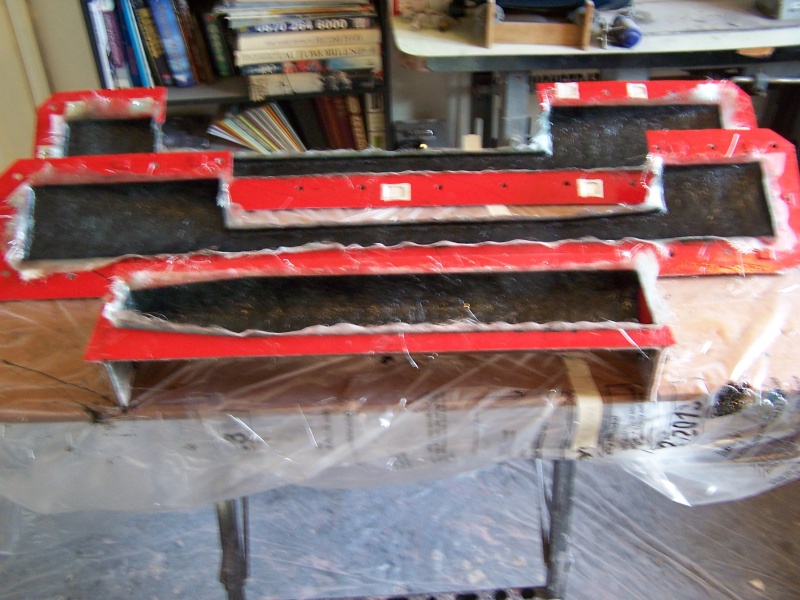

    CSS HUNLEY - Page 3 100_1828

    Moulds with the matt laminated in.
    nigele(ADMIN)2
    nigele(ADMIN)2
    AMS Chairman


    Posts : 1107
    Join date : 2010-11-06
    Age : 68
    Location : Braintree, Essex

    CSS HUNLEY - Page 3 Empty Re: CSS HUNLEY

    Post  nigele(ADMIN)2 Mon Oct 01, 2012 9:33 pm

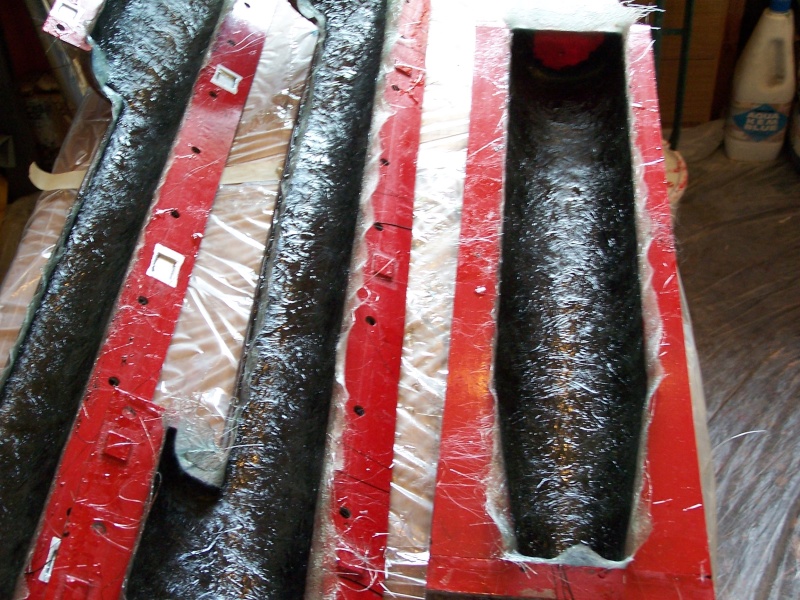

    CSS HUNLEY - Page 3 100_1829

    Another view with the matt and resin applied.


    Last edited by nigele on Tue Oct 02, 2012 1:09 pm; edited 1 time in total
    nigele(ADMIN)2
    nigele(ADMIN)2
    AMS Chairman


    Posts : 1107
    Join date : 2010-11-06
    Age : 68
    Location : Braintree, Essex

    CSS HUNLEY - Page 3 Empty Re: CSS HUNLEY

    Post  nigele(ADMIN)2 Mon Oct 01, 2012 9:35 pm

    CSS HUNLEY - Page 3 100_1830

    And another.
    nigele(ADMIN)2
    nigele(ADMIN)2
    AMS Chairman


    Posts : 1107
    Join date : 2010-11-06
    Age : 68
    Location : Braintree, Essex

    CSS HUNLEY - Page 3 Empty Re: CSS HUNLEY

    Post  nigele(ADMIN)2 Mon Oct 01, 2012 9:38 pm

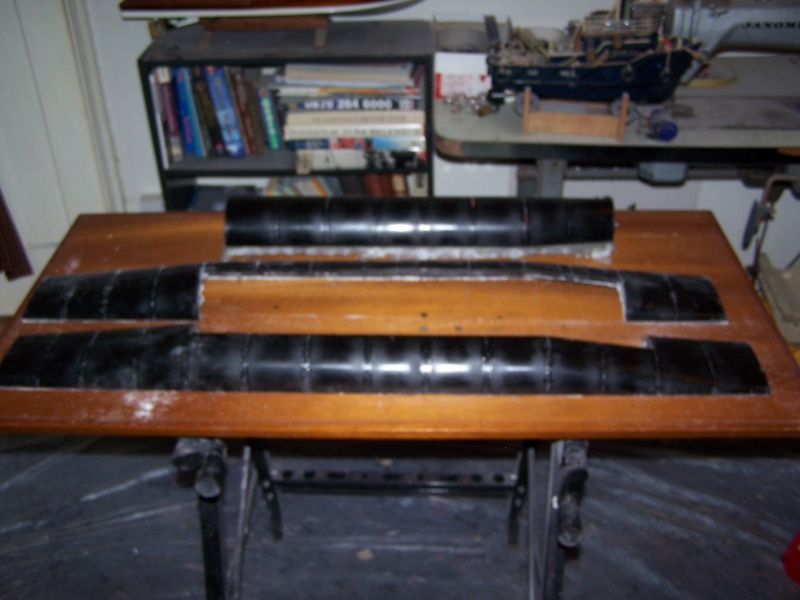

    CSS HUNLEY - Page 3 100_1831

    Half hull's and centre section removed from mould after cureing.
    nigele(ADMIN)2
    nigele(ADMIN)2
    AMS Chairman


    Posts : 1107
    Join date : 2010-11-06
    Age : 68
    Location : Braintree, Essex

    CSS HUNLEY - Page 3 Empty Re: CSS HUNLEY

    Post  nigele(ADMIN)2 Mon Oct 01, 2012 9:40 pm

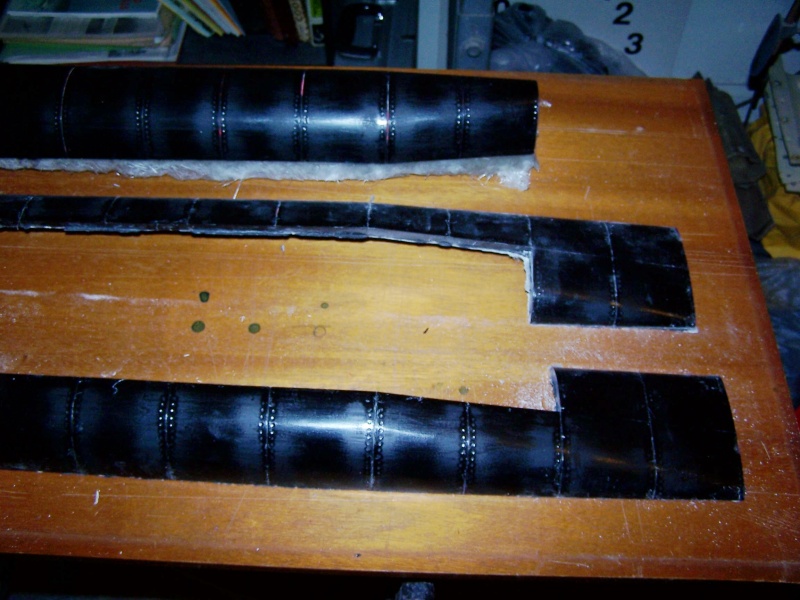

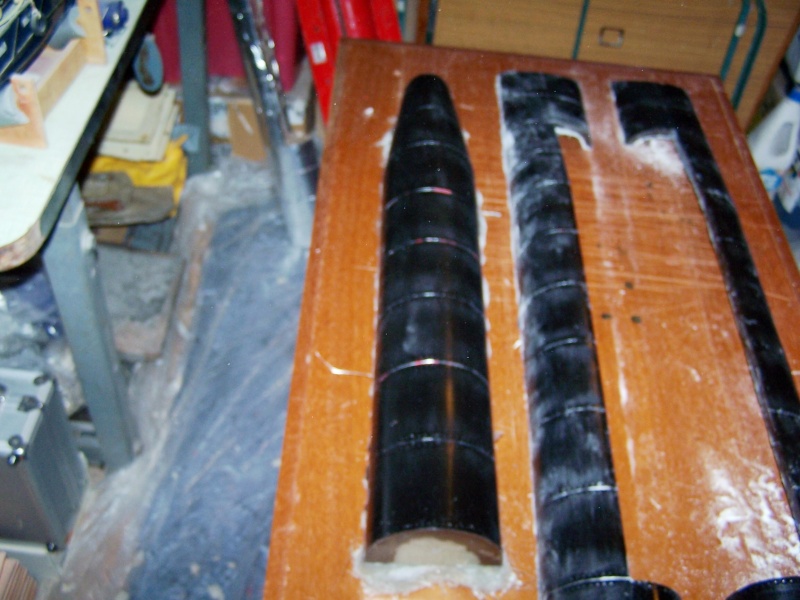

    CSS HUNLEY - Page 3 100_1832

    A few more views of the hulls.
    nigele(ADMIN)2
    nigele(ADMIN)2
    AMS Chairman


    Posts : 1107
    Join date : 2010-11-06
    Age : 68
    Location : Braintree, Essex

    CSS HUNLEY - Page 3 Empty Re: CSS HUNLEY

    Post  nigele(ADMIN)2 Mon Oct 01, 2012 9:43 pm

    CSS HUNLEY - Page 3 100_1833
    profesorul
    profesorul
    Guest


    Posts : 386
    Join date : 2011-07-03
    Age : 57
    Location : Bucuresti, ROMANIA

    CSS HUNLEY - Page 3 Empty Re: CSS HUNLEY

    Post  profesorul Tue Oct 02, 2012 12:00 pm

    HI,@nigele
    THANK YOU.Now is clear.Is a lot of work before You get the final product!.
    But from what I can see until now is great and specially so accurate.
    How thick it wheel be the hull?;how many layers of fiberglass You add?;
    I've seen in the pictures You used fist a dense fiberglass cloth and then a different fiberglass!.
    I have a question:
    -how You wheel join the 2 half in length,I mean how is going to be align?.
    Or just a upper hull is made in 2 pieces and the lower hull is in one piece in length?.
    MARIUS.
    nigele(ADMIN)2
    nigele(ADMIN)2
    AMS Chairman


    Posts : 1107
    Join date : 2010-11-06
    Age : 68
    Location : Braintree, Essex

    CSS HUNLEY - Page 3 Empty Re: CSS HUNLEY

    Post  nigele(ADMIN)2 Tue Oct 02, 2012 9:01 pm

    CSS HUNLEY - Page 3 100_1835

    Hull taped together to check fit after trimming.
    nigele(ADMIN)2
    nigele(ADMIN)2
    AMS Chairman


    Posts : 1107
    Join date : 2010-11-06
    Age : 68
    Location : Braintree, Essex

    CSS HUNLEY - Page 3 Empty Re: CSS HUNLEY

    Post  nigele(ADMIN)2 Tue Oct 02, 2012 9:03 pm

    CSS HUNLEY - Page 3 100_1836

    Another view of hull.
    nigele(ADMIN)2
    nigele(ADMIN)2
    AMS Chairman


    Posts : 1107
    Join date : 2010-11-06
    Age : 68
    Location : Braintree, Essex

    CSS HUNLEY - Page 3 Empty Re: CSS HUNLEY

    Post  nigele(ADMIN)2 Tue Oct 02, 2012 9:06 pm

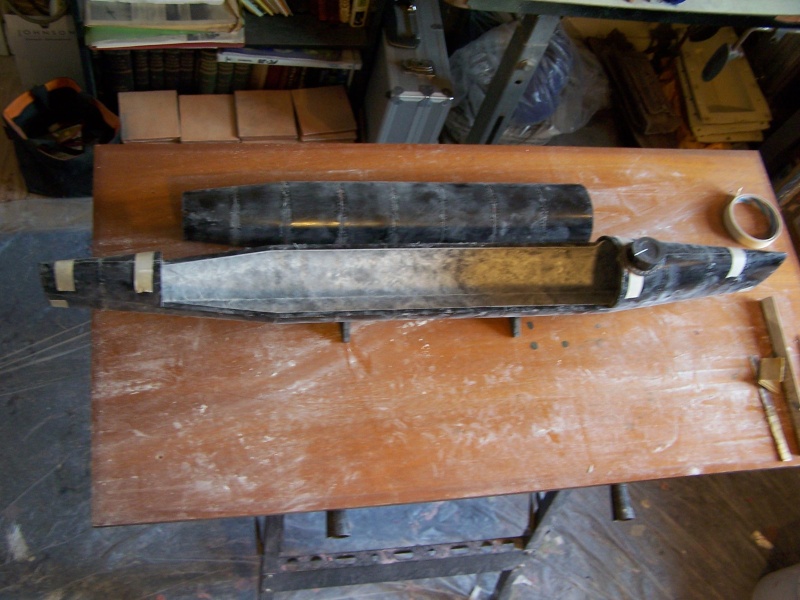

    CSS HUNLEY - Page 3 100_1837

    Another view of the hull showing the joint line which will be laminated with resin and matt.
    nigele(ADMIN)2
    nigele(ADMIN)2
    AMS Chairman


    Posts : 1107
    Join date : 2010-11-06
    Age : 68
    Location : Braintree, Essex

    CSS HUNLEY - Page 3 Empty Re: CSS HUNLEY

    Post  nigele(ADMIN)2 Tue Oct 02, 2012 9:09 pm

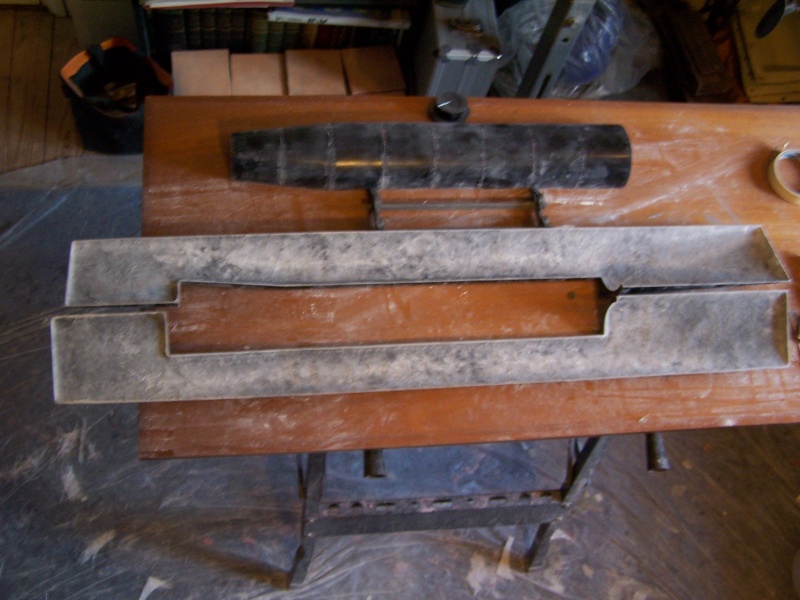

    CSS HUNLEY - Page 3 100_1838

    the hulls seperated again to be washed and fitted back in the mould to be joined.

      Current date/time is Mon Jan 24, 2022 10:36 pm
