    Laser cut Robbe U47 conversion

    avatar
    subkraft
    Guest


    Posts : 3
    Join date : 2012-06-18

    Laser cut Robbe U47 conversion Empty Laser cut Robbe U47 conversion

    Post  subkraft Sun Jun 04, 2017 12:44 am

    New member, by way of introduction this is my latest project.  Long time ago converted to a piston tank, but never really successful. Wanted geared motors and tank to fill from forward so that it dived at better angle.

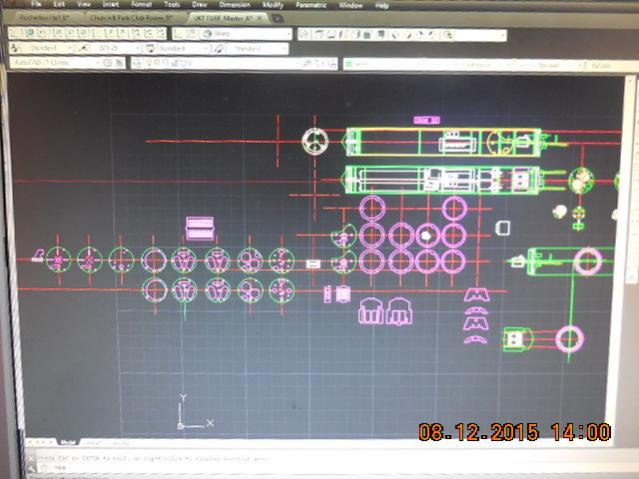

    Cad has been my day job so started long process of drawing parts and getting them laser cut.

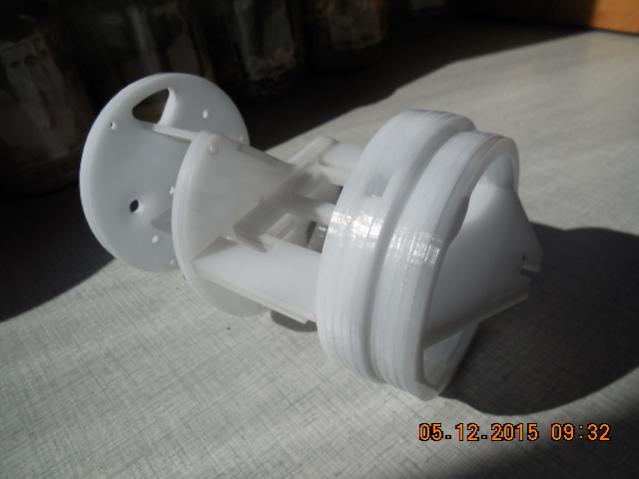

    Laser cut Robbe U47 conversion U47_tu12

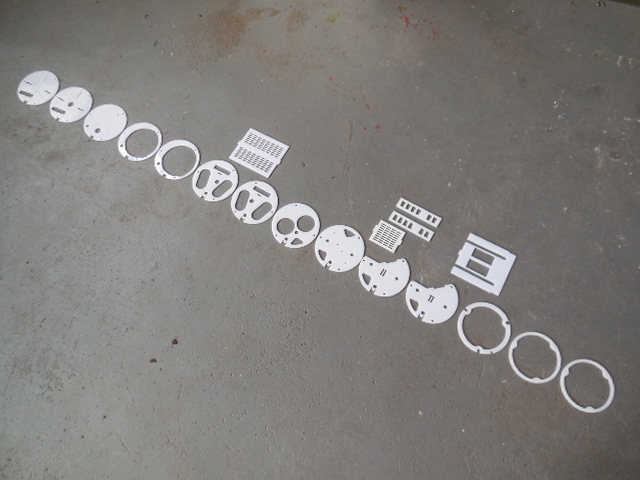

    Laser cut Robbe U47 conversion Parts_11
    Laser cut Robbe U47 conversion U47_tu13

    This has been an on / off project....but finally finished:

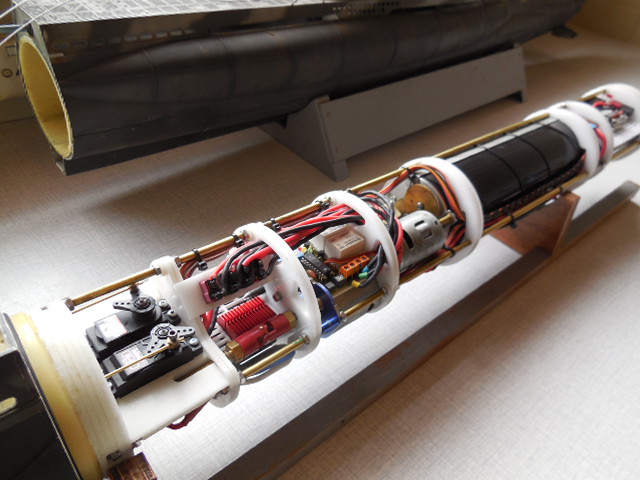

    Laser cut Robbe U47 conversion Uboat_14
    Laser cut Robbe U47 conversion Uboat_15
    Laser cut Robbe U47 conversion Uboat_16
    Laser cut Robbe U47 conversion Uboat_17


    Taking a different work direction into computer fabrication has meant I've now bought a co2 laser ....which has sped it up to completion.
    As pix show, parts are cut from 3mm acrylic and laminated.....now I'd probably 3d print some instead.
    Motors changed to 12v to keep amps down. Probably should have gone brushless for both drive and tank motors. The tank is slightly assymetrical to get clearance,  replacement with a smaller motor could have avoided this.

    So....next is to retrim.

    Pojoga and Les like this post
