    Cutting Hull Empty Cutting Hull

    Post  Radioman Mon Jun 22, 2015 8:48 pm

    After cutting hull opening how do you compensate for the gap, material you lose from the thickness of your cutting tool?
    avatar
    sailingbernie
    AMS member

    Posts : 21
    Join date : 2014-08-25
    Age : 65
    Location : Warrington

    Cutting Hull Empty Re: Cutting Hull

    Post  sailingbernie Mon Jun 22, 2015 10:41 pm

    Hi Tom

    It depends on how big a gap we a talking about and what material is involved.

    In general I tend to fill gaps caused when cutting GRP hulls with plasticard (High impact polystyrene sheet - HIPS) strips I cut myself and use cyno to secure it to the gap. The plasticard is easy to trim to a good finish and a fine filler can be made by mixing scraps of the sheet with the solvent weld.

    If I were cutting a plastic kit I would use a razor saw and if done with care the gap would not need filling. For cutting hatches in plastic kits I use a steel edge and double sided tape to hold it in place and use this as a guide to keep lines straight.


    Bernie
    Radioman
    Radioman
    Guest

    Posts : 17
    Join date : 2015-06-02
    Age : 67
    Location : Milwaukee Wisconsin

    Cutting Hull Empty Re: Cutting Hull

    Post  Radioman Mon Jun 22, 2015 11:29 pm

    Bernie

    Thanks for reply. I have been going through the builds and could not find the answer. I can now get started on the seawolf.

    Tom
    avatar
    sailingbernie
    AMS member

    Posts : 21
    Join date : 2014-08-25
    Age : 65
    Location : Warrington

    Cutting Hull Empty Re: Cutting Hull

    Post  sailingbernie Thu Jun 25, 2015 2:41 pm

    Hi Tom

    I was looking at the Sea Wolf kit today - looks a good boat.

    Hope your cutting goes well.


    Bernie
    merriman
    merriman
    Guest

    Posts : 347
    Join date : 2011-10-16
    Age : 72
    Location : Virginia Beach, Virginia

    Cutting Hull Empty Re: Cutting Hull

    Post  merriman Fri Jun 26, 2015 3:08 am

    Cutting the hull is one thing. Making up the material lost to the cutting blade (known as  kerf) is another.

    I'll address here how to make a straight and true cut using a well controlled diamond wheel  saw and how to back-fill the resulting kerf with one of several materials.

    Regardless of the material the hull is made of -- polystyrene, wood,  or GRP -- cutting the hull is the same process: The hull is secured over a work table so that the hull separation plane (the cut line) is parallel with the work tables surface. Then, using a diamond disc spun by a moto-tool,  the horizontal cuts needed to separate the upper from the lower hull half are made.

    CUTTING THE HULL AND MAKING UP THE KERF WITH PLASTIC STRIP

    Cutting Hull Dscf2610

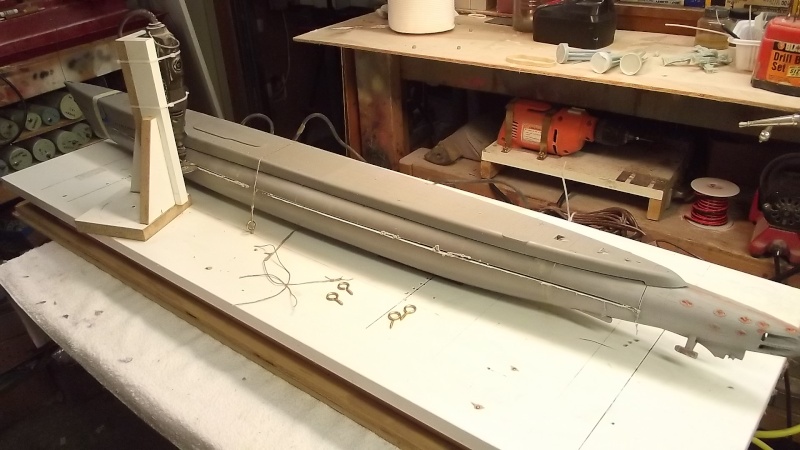

    The hull is secured to the work table with straps of heavy twine. under the keel and glued to the work table are strips of #100 sandpaper that keeps the keel from sliding along the table once the twine straps are made up and cinched down. The hull is shimmed till the proposed separation plane is parallel with the surface plane of the work table. Note that the hull cut stops near each securing twine strap -- that material is latter cut with a hand-held hack saw blade after the hull is removed from the work table.

    Cutting Hull Dscn0022

    Take a humble moto-tool equipped with a diamond saw wheel, mount the moto-tool into a fixture that holds the blade at a specific height over the work table and horizontal, wax the bottom of the fixture, and you have the means of making a precise equatorial cut around the model submarines hull. As long as the hull is held securely to the work table and the cutting fixture slides easily over the surface of the work table, all is good!

    Cutting Hull Dscf2611

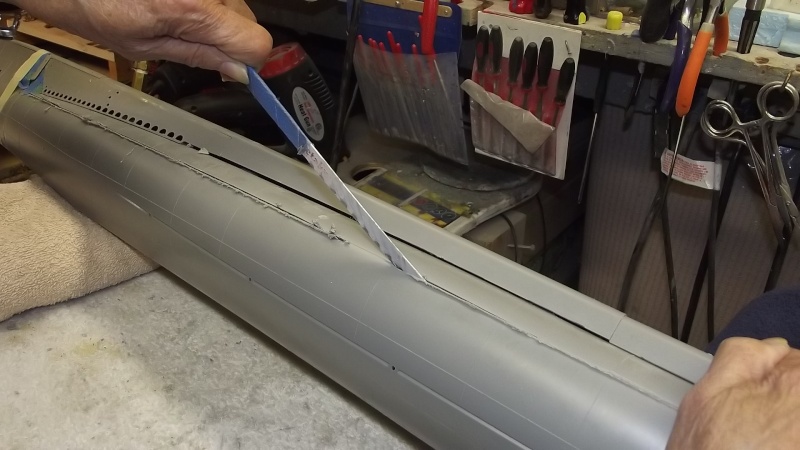

    Once all the horizontal hull separation cuts are completed with the diamond saw (less those portions under the securing twine straps), the hull is taken off the work table and the equatorial cut is finished with a hand-held hack saw blade. The required vertical cuts are made with a very thin razor saw (very narrow kerf), separating the two hull halves

    Cutting Hull Dscf2613

    Cutting Hull Dscf2614

    Since the substrate to this Revell 1/72 GATO plastic model kit is polystyrene I elected, with this particular kit, to make up the  lost kerf with strips of polystyrene -- thickness of the strip just a bit more than the thickness of the cutting wheel. Got to account for slop. You can either adhere the strip to the hull edges with CA or weld the strips to the hull with a solvent type cement. I'm the impatient type ... I went with the CA.

    CUTTING THE HULL AND MAKING UP THE KERF WITH CA REINFORCED BONDO

    Cutting Hull Dscn0021

    I've assembled four Revell GATO's to date. On this one I went with a different means of making up the material lost to kerf. I laid on masking tape to the outside and inside of the hull, with the upper edge of the tape extending past the edge of the lower hull by about 3/32", the mean thickness of kerf lost to the diamond wheel.

    A two part automotive filler was catalyzed and pushed into the space between the two tape strips and left to cure hard.

    Cutting Hull Dscn0023

    Very carefully, the outboard strip of tap was removed and thin formula CA was applied over the outboard face of the filler. The very porous filler becomes saturated with the CA. The result is an enhanced bond between filler and edge of the lower hull. This thin strip of filler, now bonded to the edges of the lower hull,  assumes about the same surface hardness as the surrounding polystyrene.

    The inboard strip of masking tape is removed and the CA treatment repeated. The CA also enhances the bond between filler and plastic model.

    Cutting Hull Dscn0118

    Cutting Hull Dscn0119

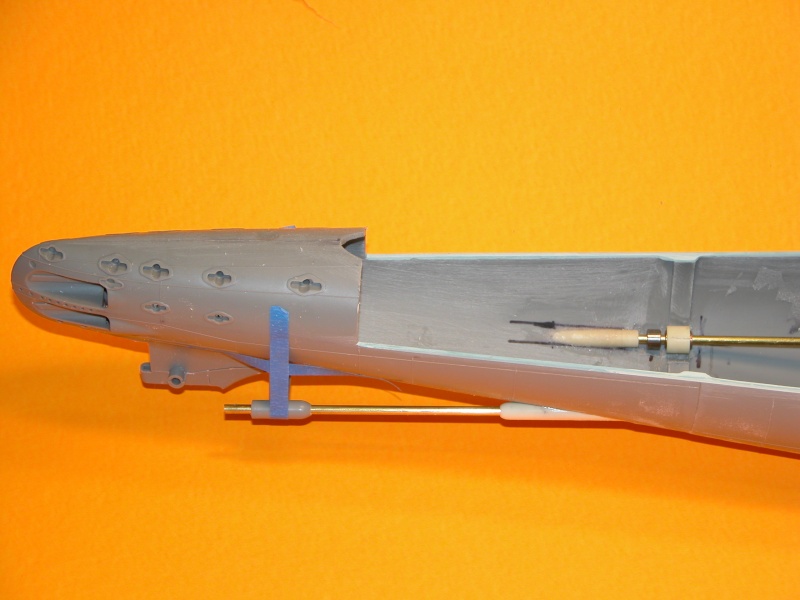

    The completed hull separation task. The cuts made and plastic lost to kerf made up with automotive filler strengthened with CA adhesive.

    Cutting Hull Dscn0020

    After outfitting the upper and lower hull with indexing tabs, filler was mixed up and applied on and near the seam line between the assembled upper and lower hull. Before the filler cured hard, a knife blade was run along the seam to prevent the filler from sticking the two hull halves together. After the filler cured hard, I went at it with a soft sanding block. This is how you get a tight, barely visible seam between the two hull halves.

    Cutting Hull Dscn0210

    And here you have the two hull halves, material lost to kerf built back up to produce a very tight seam between the two. Note the use of sheet styrene indexing tabs, there to insure a tight, well registered fit.

    Cutting Hull Dscn0019

    The completed GATO plastic model kit, converted to r/c operation.

    David
    Radioman
    Radioman
    Guest

    Posts : 17
    Join date : 2015-06-02
    Age : 67
    Location : Milwaukee Wisconsin

    Cutting Hull Empty Kerf

    Post  Radioman Sun Jul 05, 2015 10:21 pm

    David,

    Great job explaning the kerf and filling it in. The pictures help greatly. I looked at different fourms and this is the greasted answer to my question.


    Thanks, I can now get started on the seawolf. Will post pictures when I start in the build fourm.

    Tom
