    Pinger 4 - A simpler design for an ultrasonic Pinger which gives an accurate 1 second pulse.

    david f
    david f
    AMS Treasurer


    Posts : 2393
    Join date : 2010-11-10
    Age : 73
    Location : Cumbria

    Pinger 4  -  A simpler design for an ultrasonic Pinger which gives an accurate 1 second pulse. Empty Pinger 4 - A simpler design for an ultrasonic Pinger which gives an accurate 1 second pulse.

    Post  david f Fri Oct 01, 2021 2:42 pm

    Pinger 4  -  A simpler design for an ultrasonic Pinger which gives an accurate 1 second pulse. Pinger10

    This is a simpler design which uses an external watch crystal to provide an accurate 1 second ultrasonic pulse. Battery life is at least 3 days.
    The waterproof case comes from your local B & Q (Other stores are available!)
    The ultrasonic transducer cable feeds through the end cap (sealed with silicone rubber tubing) and is supported by the white 3D printed part.
    The LED and a piece of fibre optic can feed the light output through a pipe outlet so that you can see it more easily from outside the case.
    I have done some in-water testing on my Charlie class sub. The Pinger gives a tight "torch beam" signal which helps to locate your sunk model sub. Range is at least 4m.
    The Pinger was mounted externally at the stern of the sub.
    The receiver is  the "simple bat detector" using the same Banggood ultrasonic transducer as the Pinger.
    http://batdetector.freevar.com/

    The design uses a 16f18313 pic and an external 32.768 KHz clock crystal to give an accurate 1 second pulse.
    A normally closed reed switch is "hot-melted" to the back of the battery holder and can be switched off using the magnet.
    Software is available here (more information forms comments in the main.c file):
    https://github.com/rdforrest/Pinger-model-submarine

    Pinger 4  -  A simpler design for an ultrasonic Pinger which gives an accurate 1 second pulse. 20211010

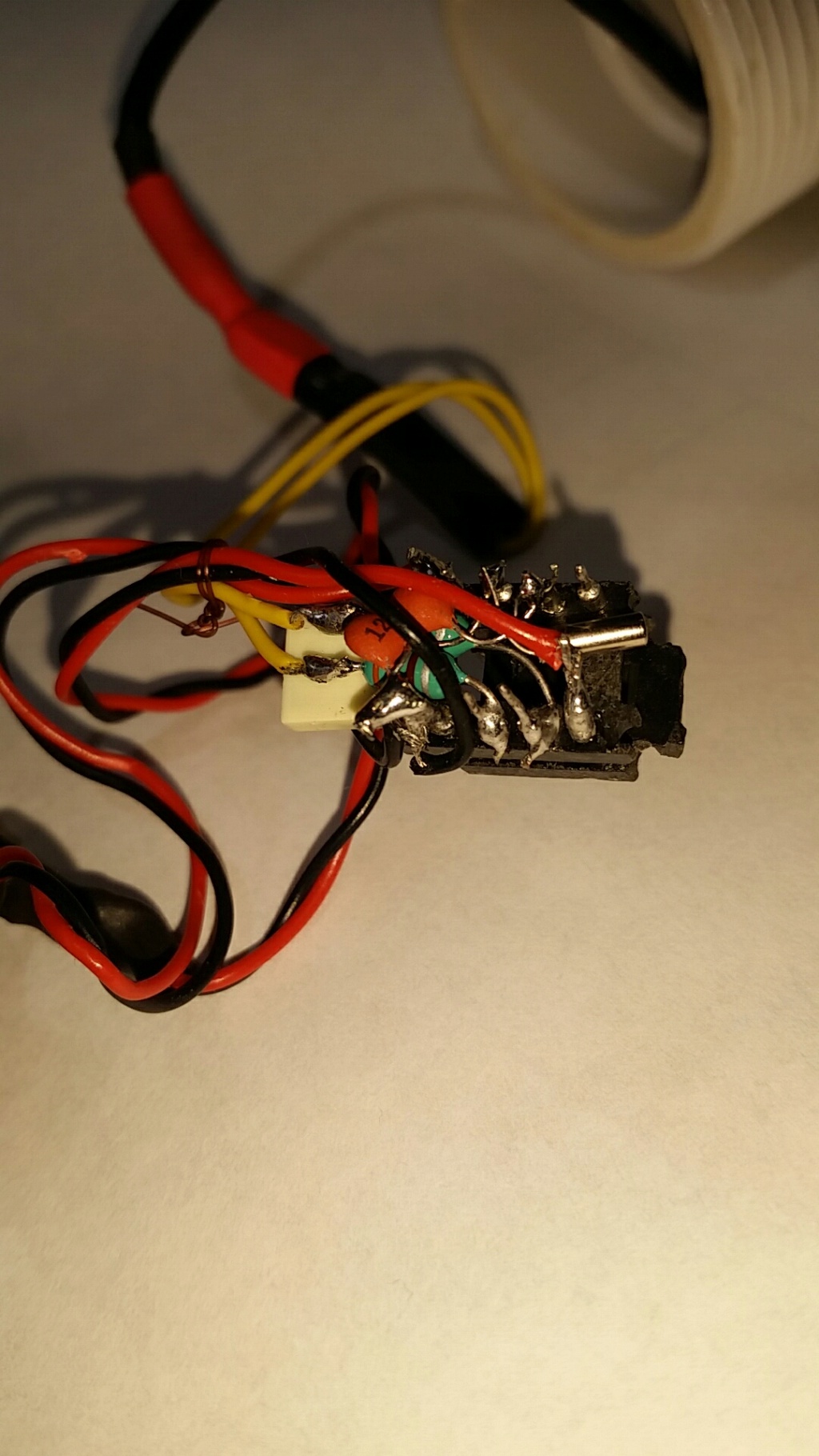

    This shows the back of the chip socket. The clock crystal is on the right. Two 12pF ceramic capacitors for the crystal. One 0.1 uF decoupling capacitor across the power input. The components looking like resistors are small series inductors which improve the range of the ultrasonic transducer.

    SimonH likes this post

    avatar
    geofrancis


    Posts : 281
    Join date : 2021-09-24

    Pinger 4  -  A simpler design for an ultrasonic Pinger which gives an accurate 1 second pulse. Empty Re: Pinger 4 - A simpler design for an ultrasonic Pinger which gives an accurate 1 second pulse.

    Post  geofrancis Sun Oct 03, 2021 6:18 am

    would an fsk modem work over a hydrophone?

    david f likes this post

    avatar
    SimonH


    Posts : 89
    Join date : 2020-09-29
    Location : Nottingham, UK

    Pinger 4  -  A simpler design for an ultrasonic Pinger which gives an accurate 1 second pulse. Empty Re: Pinger 4 - A simpler design for an ultrasonic Pinger which gives an accurate 1 second pulse.

    Post  SimonH Wed Oct 06, 2021 9:32 pm

    In theory we could use any signalling protocol, its just the final 'carrier' that is different, and indeed hydrophone based communications exist, but as ever the catch is in the detail:
    1.  data rate is slow. This is because for a simple FSK modem type link you need a number of carrier cycles to detect the data bit. For a RF based system the carrier would be 458MHz, 27MHz or what ever, whereas for a hydrophone system the carrier would be probably 30kHz to 100kHz depending on the transducer (they are often supplied as matching Tx/Rx pairs), for those of a certain age, who remebers the audio based modem of the sinclair Z80 machines?
    2. Most hydrophones are directional, so produce a narrow torch beam of signal as David says. You could design a fully gimballed transducer tracking system (like a satelite or radar tracking system) but they don't come cheap or small (fun though!). The alternative would be a multi-channel system with multiple trasnducers to cover all angles, but then they all have to be tuned to the same frequency.....
    3. interference. As sound travels through water very well it means that any 'noise' will also travel, so in a body of water with other 'stuff' going on there will be a lot of accoustic noise (waves, wind, other boats, etc) This means more filtering and/or even slower data rates.

    More fun to play with might be based on lasers, pick the right optical frequency and it will travel through murky water, and a multi-channel system becomes more feasible, just cover you boat will optical sensors, bit like accoustic tiles.

    PS. rather than exposing the acoustic transducers to the water pressure I have seen DIY echo-sounders (some years ago) mounting the transuder inside the hull in a tube, but filling the tube with some fluid so as to transmit the sound vibrations from the transducer to the hull, but without having the transducer having the water pressure on it. They are quite brittle so going too deep could cause it to crack.

    david f likes this post

    avatar
    geofrancis


    Posts : 281
    Join date : 2021-09-24

    Pinger 4  -  A simpler design for an ultrasonic Pinger which gives an accurate 1 second pulse. Empty Re: Pinger 4 - A simpler design for an ultrasonic Pinger which gives an accurate 1 second pulse.

    Post  geofrancis Wed Oct 06, 2021 10:59 pm

    SimonH wrote:In theory we could use any signalling protocol, its just the final 'carrier' that is different, and indeed hydrophone based communications exist, but as ever the catch is in the detail:
    1.  data rate is slow. This is because for a simple FSK modem type link you need a number of carrier cycles to detect the data bit. For a RF based system the carrier would be 458MHz, 27MHz or what ever, whereas for a hydrophone system the carrier would be probably 30kHz to 100kHz depending on the transducer (they are often supplied as matching Tx/Rx pairs), for those of a certain age, who remebers the audio based modem of the sinclair Z80 machines?
    2. Most hydrophones are directional, so produce a narrow torch beam of signal as David says. You could design a fully gimballed transducer tracking system (like a satelite or radar tracking system) but they don't come cheap or small (fun though!). The alternative would be a multi-channel system with multiple trasnducers to cover all angles, but then they all have to be tuned to the same frequency.....
    3. interference. As sound travels through water very well it means that any 'noise' will also travel, so in a body of water with other 'stuff' going on there will be a lot of accoustic noise (waves, wind, other boats, etc) This means more filtering and/or even slower data rates.

    More fun to play with might be based on lasers, pick the right optical frequency and it will travel through murky water, and a multi-channel system becomes more feasible, just cover you boat will optical sensors, bit like accoustic tiles.

    PS. rather than exposing the acoustic transducers to the water pressure I have seen DIY echo-sounders (some years ago) mounting the transuder inside the hull in a tube, but filling the tube with some fluid so as to transmit the sound vibrations from the transducer to the hull, but without having the transducer having the water pressure on it. They are quite brittle so going too deep could cause it to crack.

    The reason I suggested a fsk modem is they have been used on the audio channel of FPV video transmitters to send Lightweight TeleMetry protocol (LTM) one way at 2400 baud. 2400baud is slow but its still enough for dozens if readings sent every second. https://quadmeup.com/ltm-light-telemetry-protocol/
    https://www.rcgroups.com/forums/showthread.php?2963807-FSK-Modem-in-RC-Obsolete-or-a-hidden-gem

    david f likes this post

    david f
    david f
    AMS Treasurer


    Posts : 2393
    Join date : 2010-11-10
    Age : 73
    Location : Cumbria

    Pinger 4  -  A simpler design for an ultrasonic Pinger which gives an accurate 1 second pulse. Empty Re: Pinger 4 - A simpler design for an ultrasonic Pinger which gives an accurate 1 second pulse.

    Post  david f Thu Oct 14, 2021 10:14 am

    I see what you are getting at, Geo. EVen low data rates would be useful for model sub telemetry!
    Simon is probably correct in that it would be less good for model control.
    THis discussion has opened my eyes to some new options for model subs.
    David
    avatar
    geofrancis


    Posts : 281
    Join date : 2021-09-24

    Pinger 4  -  A simpler design for an ultrasonic Pinger which gives an accurate 1 second pulse. Empty Re: Pinger 4 - A simpler design for an ultrasonic Pinger which gives an accurate 1 second pulse.

    Post  geofrancis Thu Nov 04, 2021 1:31 am

    david f wrote:I see what you are getting at, Geo.  EVen low data rates would be useful for model sub telemetry!
    Simon is probably correct in that it would be less good for model control.
    THis discussion has opened my eyes to some new options for model subs.
    David

    it probably wouldnt work at 2400 due to the noise in the water. but it would still be viable for telemetry even down at 300baud since they are getting over 10hz at 2400, 1hz update would work for your uses.

    david f likes this post

    david f
    david f
    AMS Treasurer


    Posts : 2393
    Join date : 2010-11-10
    Age : 73
    Location : Cumbria

    Pinger 4  -  A simpler design for an ultrasonic Pinger which gives an accurate 1 second pulse. Empty Re: Pinger 4 - A simpler design for an ultrasonic Pinger which gives an accurate 1 second pulse.

    Post  david f Tue Aug 29, 2023 12:16 pm

    An Ultrasonic Pinger in action!

    R/C Warship Guy - my Saviour! I took my Holland on a stupid power dive (brushless motor!) and lost it on the bottom. I picked up the signal straight away and by twistng the transducer I got a bearing. He followed the "Pinger" directional bearing and rescued it on his first walk-out. Thank you!

    Pinger 4  -  A simpler design for an ultrasonic Pinger which gives an accurate 1 second pulse. 20230117

    geofrancis likes this post

    david f
    david f
    AMS Treasurer


    Posts : 2393
    Join date : 2010-11-10
    Age : 73
    Location : Cumbria

    Pinger 4  -  A simpler design for an ultrasonic Pinger which gives an accurate 1 second pulse. Empty Re: Pinger 4 - A simpler design for an ultrasonic Pinger which gives an accurate 1 second pulse.

    Post  david f Tue Oct 17, 2023 12:54 pm

    Slightly off topic, being about wildlife. but I was so pleased to see a bat fluttering outside our house yesterday evening. (I thought they had left this "neck of the woods")

    Confirmed by listening to it with the ultrasonic detector. Very directional in air as it is in water.

    David
