    Alexander Engel Russian typhoon Submarine

    deepseadiver
    deepseadiver

    Posts : 52
    Join date : 2018-12-09
    Age : 47
    Location : Del Mar

      Alexander Engel  Russian typhoon  Submarine  Empty Alexander Engel Russian typhoon Submarine

    Post  deepseadiver on Mon Dec 10, 2018 4:32 am

    first thing was the two big boxes from Germany


      Alexander Engel  Russian typhoon  Submarine  Image_10
    deepseadiver
    deepseadiver

    Posts : 52
    Join date : 2018-12-09
    Age : 47
    Location : Del Mar

      Alexander Engel  Russian typhoon  Submarine  Empty getting started man this thing is big

    Post  deepseadiver on Mon Dec 10, 2018 4:38 am

    My work shop to build  this beast

      Alexander Engel  Russian typhoon  Submarine  20181110
      Alexander Engel  Russian typhoon  Submarine  20181111


    Last edited by deepseadiver on Mon Dec 10, 2018 7:53 am; edited 1 time in total
    deepseadiver
    deepseadiver

    Posts : 52
    Join date : 2018-12-09
    Age : 47
    Location : Del Mar

      Alexander Engel  Russian typhoon  Submarine  Empty Re: Alexander Engel Russian typhoon Submarine

    Post  deepseadiver on Mon Dec 10, 2018 4:44 am

    cut outs for the dive plans I did along with the drain ports
      Alexander Engel  Russian typhoon  Submarine  20181115
      Alexander Engel  Russian typhoon  Submarine  20181114
    cutting and filing the drain holes  so many of them

      Alexander Engel  Russian typhoon  Submarine  00110
      Alexander Engel  Russian typhoon  Submarine  20181112


    Last edited by deepseadiver on Mon Dec 10, 2018 7:53 am; edited 1 time in total
    deepseadiver
    deepseadiver

    Posts : 52
    Join date : 2018-12-09
    Age : 47
    Location : Del Mar

      Alexander Engel  Russian typhoon  Submarine  Empty Re: Alexander Engel Russian typhoon Submarine

    Post  deepseadiver on Mon Dec 10, 2018 7:19 am

    this is  the  electronic WTC  which I decided to cut out the openings bigger . instead of one opening there will be three of them.  I will be placing clear Acrylic panel to see everything that's going on inside the box.  Engel gives you a aluminum plate but  you can't see inside. I must be in control of my submarine electronic  by a glance. Up coming steps of me doing this procedure  will be seen further in the build this will be  very time consuming but worth  it.




      Alexander Engel  Russian typhoon  Submarine  0110
      Alexander Engel  Russian typhoon  Submarine  20181116


    Last edited by deepseadiver on Mon Dec 10, 2018 8:01 am; edited 1 time in total
    deepseadiver
    deepseadiver

    Posts : 52
    Join date : 2018-12-09
    Age : 47
    Location : Del Mar

      Alexander Engel  Russian typhoon  Submarine  Empty Re: Alexander Engel Russian typhoon Submarine

    Post  deepseadiver on Mon Dec 10, 2018 7:33 am

    This is placing lead shot in the keel I have been told not to place all of it In the keel because  some may have to be taken out. So I used plastic wrap laid down inside the keel while the lead shot rest on top. Then i will poured in  the resin once cured i peeled off the plastic wrap  . Now  I can remove the weight as needed and  trim it to proper weight  .  once I achieve this I can glue it in hassle free. Something tells me I may use all of it but Im not taking chances .


      Alexander Engel  Russian typhoon  Submarine  A10
      Alexander Engel  Russian typhoon  Submarine  B10
      Alexander Engel  Russian typhoon  Submarine  C10
    deepseadiver
    deepseadiver

    Posts : 52
    Join date : 2018-12-09
    Age : 47
    Location : Del Mar

      Alexander Engel  Russian typhoon  Submarine  Empty Re: Alexander Engel Russian typhoon Submarine

    Post  deepseadiver on Mon Dec 10, 2018 7:38 am

    more pictures of the keel  weight process I did.   Alexander Engel  Russian typhoon  Submarine  D_110
      Alexander Engel  Russian typhoon  Submarine  D10
      Alexander Engel  Russian typhoon  Submarine  E10
    deepseadiver
    deepseadiver

    Posts : 52
    Join date : 2018-12-09
    Age : 47
    Location : Del Mar

      Alexander Engel  Russian typhoon  Submarine  Empty Re: Alexander Engel Russian typhoon Submarine

    Post  deepseadiver on Mon Dec 10, 2018 7:46 am


    cured and finished and removable . be safe then sorry


      Alexander Engel  Russian typhoon  Submarine  F10
      Alexander Engel  Russian typhoon  Submarine  G10
      Alexander Engel  Russian typhoon  Submarine  H10
    deepseadiver
    deepseadiver

    Posts : 52
    Join date : 2018-12-09
    Age : 47
    Location : Del Mar

      Alexander Engel  Russian typhoon  Submarine  Empty Re: Alexander Engel Russian typhoon Submarine

    Post  deepseadiver on Mon Dec 10, 2018 7:50 am

    they just pull out so nicely I also trimmed off all the  excess resin and made them fit even better for the future

      Alexander Engel  Russian typhoon  Submarine  J10
    deepseadiver
    deepseadiver

    Posts : 52
    Join date : 2018-12-09
    Age : 47
    Location : Del Mar

      Alexander Engel  Russian typhoon  Submarine  Empty Re: Alexander Engel Russian typhoon Submarine

    Post  deepseadiver on Mon Dec 10, 2018 8:05 am

    this is the material I took out and the cut outs of my three compartments there was steel bars along the sides I took out Engel like to make there boxes very strong. Some of the metal going the other direction I left it inside for strength


      Alexander Engel  Russian typhoon  Submarine  20181117
      Alexander Engel  Russian typhoon  Submarine  20181119
      Alexander Engel  Russian typhoon  Submarine  20181118
    deepseadiver
    deepseadiver

    Posts : 52
    Join date : 2018-12-09
    Age : 47
    Location : Del Mar

      Alexander Engel  Russian typhoon  Submarine  Empty Re: Alexander Engel Russian typhoon Submarine

    Post  deepseadiver on Mon Dec 10, 2018 8:12 am

    The cut outs and the steel rods I took out.  this is why I  think l will  probably use all of my lead shot in the keel to make up for it being removed  .

      Alexander Engel  Russian typhoon  Submarine  20181120
      Alexander Engel  Russian typhoon  Submarine  20181122
      Alexander Engel  Russian typhoon  Submarine  20181121
    deepseadiver
    deepseadiver

    Posts : 52
    Join date : 2018-12-09
    Age : 47
    Location : Del Mar

      Alexander Engel  Russian typhoon  Submarine  Empty Re: Alexander Engel Russian typhoon Submarine

    Post  deepseadiver on Mon Dec 10, 2018 8:17 am

     there a lot of work involved you can see a very thin rim or acrylic I placed along the edge to have the o ring rest against for proper seal

      Alexander Engel  Russian typhoon  Submarine  Plates12

      Alexander Engel  Russian typhoon  Submarine  K10


    Last edited by deepseadiver on Mon Dec 10, 2018 8:51 am; edited 3 times in total
    deepseadiver
    deepseadiver

    Posts : 52
    Join date : 2018-12-09
    Age : 47
    Location : Del Mar

      Alexander Engel  Russian typhoon  Submarine  Empty Re: Alexander Engel Russian typhoon Submarine

    Post  deepseadiver on Mon Dec 10, 2018 8:24 am

    epoxy the bolts in place after drilling the holes i did not use the resin in picture because the epoxy is stronger .

      Alexander Engel  Russian typhoon  Submarine  20181124

      Alexander Engel  Russian typhoon  Submarine  Yy10
      Alexander Engel  Russian typhoon  Submarine  Vv10


    Last edited by deepseadiver on Mon Dec 10, 2018 10:01 pm; edited 2 times in total
    deepseadiver
    deepseadiver

    Posts : 52
    Join date : 2018-12-09
    Age : 47
    Location : Del Mar

      Alexander Engel  Russian typhoon  Submarine  Empty Re: Alexander Engel Russian typhoon Submarine

    Post  deepseadiver on Mon Dec 10, 2018 8:31 am

    finishing up the bolt being glued in.



      Alexander Engel  Russian typhoon  Submarine  Xx11
      Alexander Engel  Russian typhoon  Submarine  Yy12
    deepseadiver
    deepseadiver

    Posts : 52
    Join date : 2018-12-09
    Age : 47
    Location : Del Mar

      Alexander Engel  Russian typhoon  Submarine  Empty Re: Alexander Engel Russian typhoon Submarine

    Post  deepseadiver on Mon Dec 10, 2018 8:45 am

    getting the windows ready and fitted


      Alexander Engel  Russian typhoon  Submarine  Rr11
      Alexander Engel  Russian typhoon  Submarine  Qq11
      Alexander Engel  Russian typhoon  Submarine  Tt10
    deepseadiver
    deepseadiver

    Posts : 52
    Join date : 2018-12-09
    Age : 47
    Location : Del Mar

      Alexander Engel  Russian typhoon  Submarine  Empty Re: Alexander Engel Russian typhoon Submarine

    Post  deepseadiver on Mon Dec 10, 2018 8:56 am

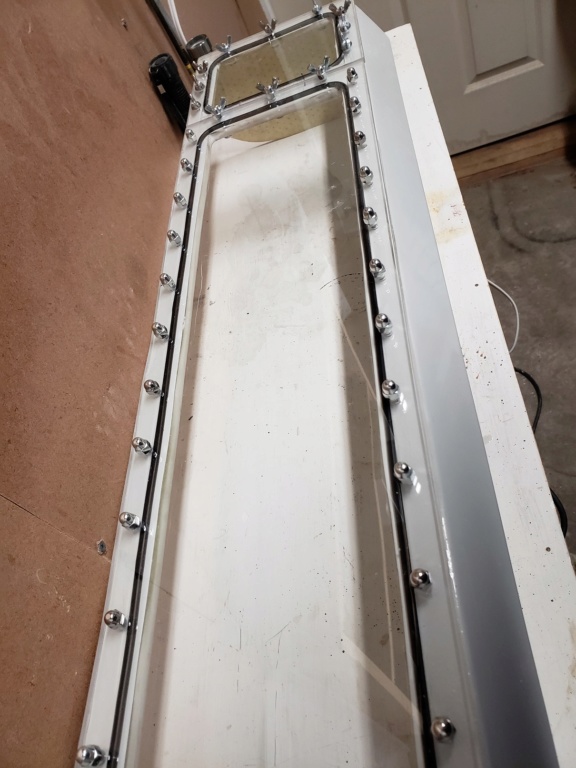

    the rubber o rings have been installed things are happening boy that was a lot of work the two cross section  pieces that divide the two separate compartments there's is steel reinforcement plates I left in there for  strength place in by Engel



      Alexander Engel  Russian typhoon  Submarine  Ss10
      Alexander Engel  Russian typhoon  Submarine  Uu10


    Last edited by deepseadiver on Mon Dec 10, 2018 10:05 pm; edited 2 times in total
    deepseadiver
    deepseadiver

    Posts : 52
    Join date : 2018-12-09
    Age : 47
    Location : Del Mar

      Alexander Engel  Russian typhoon  Submarine  Empty Re: Alexander Engel Russian typhoon Submarine

    Post  deepseadiver on Mon Dec 10, 2018 9:01 am

    The cut out on the top deck for the coning tower placement for the retractable mechanism


      Alexander Engel  Russian typhoon  Submarine  Zz10
    deepseadiver
    deepseadiver

    Posts : 52
    Join date : 2018-12-09
    Age : 47
    Location : Del Mar

      Alexander Engel  Russian typhoon  Submarine  Empty Re: Alexander Engel Russian typhoon Submarine

    Post  deepseadiver on Mon Dec 10, 2018 9:07 am

    thanks to Bob Martin, I installed a air valve which is a better way to pressurize the WTC to check for leaks. Place some pressurized air inside and come back one hour, later and see if any pressure is gone, if not you got a pretty good water tight seal .


      Alexander Engel  Russian typhoon  Submarine  20181210
      Alexander Engel  Russian typhoon  Submarine  20181211
      Alexander Engel  Russian typhoon  Submarine  20181212
    deepseadiver
    deepseadiver

    Posts : 52
    Join date : 2018-12-09
    Age : 47
    Location : Del Mar

      Alexander Engel  Russian typhoon  Submarine  Empty Re: Alexander Engel Russian typhoon Submarine

    Post  deepseadiver on Mon Dec 10, 2018 9:14 am


    nice touch with a nice chrome cap

      Alexander Engel  Russian typhoon  Submarine  20181214
      Alexander Engel  Russian typhoon  Submarine  20181213
    avatar
    timgarrod
    AMS Website Webmaster

    Posts : 231
    Join date : 2013-04-23
    Age : 38

      Alexander Engel  Russian typhoon  Submarine  Empty Re: Alexander Engel Russian typhoon Submarine

    Post  timgarrod on Tue Dec 11, 2018 6:25 pm

    Looking good.

    word of warning as mine and other has done the same. the Gear the holds the propshaft can come apart and then the gear will spin on the shaft. Drill a hole though the gear the shaft and then peg the it.
    deepseadiver
    deepseadiver

    Posts : 52
    Join date : 2018-12-09
    Age : 47
    Location : Del Mar

      Alexander Engel  Russian typhoon  Submarine  Empty Re: Alexander Engel Russian typhoon Submarine

    Post  deepseadiver on Tue Dec 11, 2018 8:55 pm

    timgarrod wrote:Looking good.

    word of warning as mine and other has done the same. the Gear the holds the propshaft can come apart and then the gear will spin on the shaft. Drill a hole though the gear the shaft and then peg the it.

    Hi timgarrod,
    So if im correct what you are telling once I get to placing In the prop shaft it can come apart then it will spin freely. So I should place a pin through the shaft keeping it together for good is this correct.
    thanks for the heads up that's what i need

    kind regards
    Jim
    avatar
    timgarrod
    AMS Website Webmaster

    Posts : 231
    Join date : 2013-04-23
    Age : 38

      Alexander Engel  Russian typhoon  Submarine  Empty Re: Alexander Engel Russian typhoon Submarine

    Post  timgarrod on Tue Dec 11, 2018 10:20 pm

    Hi Jim,

    That it, post a photo tomorrow night of the gear. Mine worked fine for years, but at the indoor event last month it finally failed and lost on off the drive motor. :(

    think it due to weed jamming the prop and wearing down the bond between the brass shaft and the gear.

    cheers
    deepseadiver
    deepseadiver

    Posts : 52
    Join date : 2018-12-09
    Age : 47
    Location : Del Mar

      Alexander Engel  Russian typhoon  Submarine  Empty Re: Alexander Engel Russian typhoon Submarine

    Post  deepseadiver on Tue Dec 11, 2018 10:33 pm

    timgarrod wrote:Hi Jim,

    That it, post a photo tomorrow night of the gear. Mine worked fine for years, but at the indoor event last month it finally failed and lost on off the drive motor. :(

    think it due to weed jamming the prop and wearing down the bond between the brass shaft and the gear.

    cheers
    Hi Tim,

    that is very valuable information for others as well . Yes if you can post a picture on my thread .I would appreciate it so I know were exactly I need to place the pin.



    thanks a bunch
    cheers

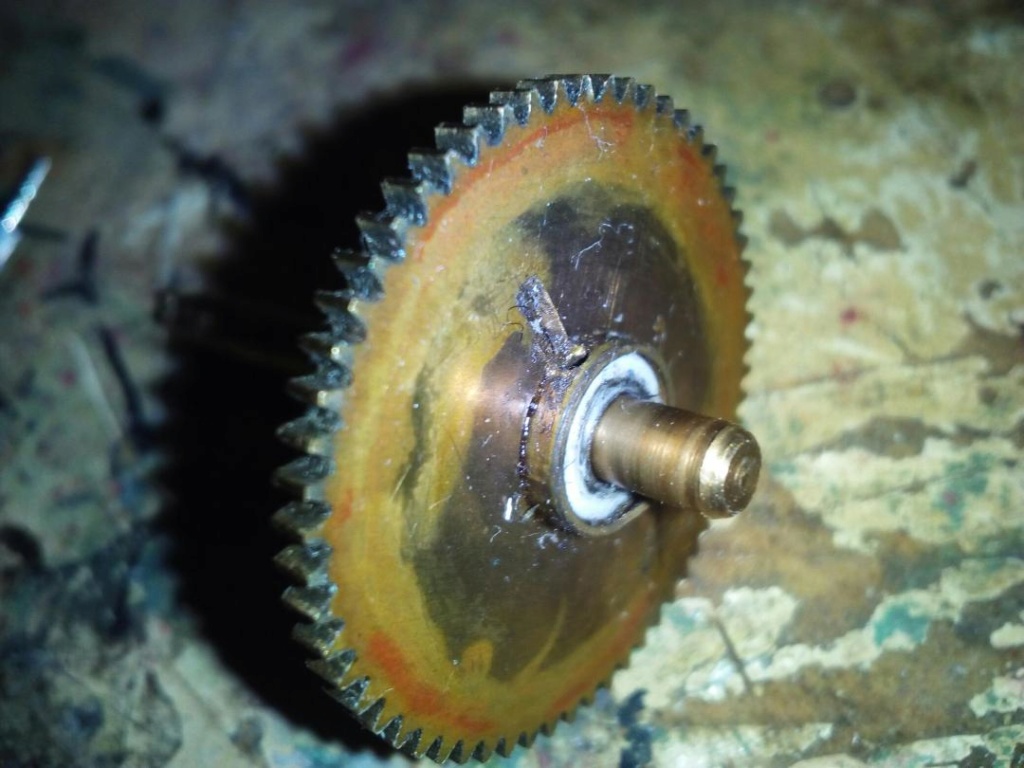

      Alexander Engel  Russian typhoon  Submarine  Drive_10
      Alexander Engel  Russian typhoon  Submarine  Gear_t10
    deepseadiver
    deepseadiver

    Posts : 52
    Join date : 2018-12-09
    Age : 47
    Location : Del Mar

      Alexander Engel  Russian typhoon  Submarine  Empty Re: Alexander Engel Russian typhoon Submarine

    Post  deepseadiver on Fri Dec 14, 2018 2:57 am

    Hi Tim,

    so what i can see is when the propellers, hit some grass, or things in the water over time you will get this main drive  gear, to slip and pull out from it's mounting . So what you did was drill, a hole through the gear, and shaft, and placed a pin  . I will look at my gear,system also see what I can do to make sure this does not happen to me .   comments  are welcome everyone. Anyone else have this problem  please share.

    thanks for the heads up
    deepseadiver
    deepseadiver

    Posts : 52
    Join date : 2018-12-09
    Age : 47
    Location : Del Mar

      Alexander Engel  Russian typhoon  Submarine  Empty Re: Alexander Engel Russian typhoon Submarine

    Post  deepseadiver on Thu Dec 20, 2018 8:15 am

    I NEED SOME HELP ANY ONE ! I posted a picture of a watt meter that was suppose to work for 6 volts system because my typhoon is a 6 volt system. Well it only seems to work on 12 volts only . Does not even glow light up nothing on 6 volts. I want some thing that works. Can someone please send me a link of a 6 volt meter that works for sure.
    would be much appreciated

    thanks Jim   Alexander Engel  Russian typhoon  Submarine  Dc_met10
    deepseadiver
    deepseadiver

    Posts : 52
    Join date : 2018-12-09
    Age : 47
    Location : Del Mar

      Alexander Engel  Russian typhoon  Submarine  Empty Re: Alexander Engel Russian typhoon Submarine

    Post  deepseadiver on Sat Dec 22, 2018 7:06 am

    I was told what the problem was there is a outside small power supply, small little pins that need to be powered up  for the meter to turn on . normally you need to do nothing if the power is over 12 volts In this case 6 volts is  to low for the screen to turn on with out  some help.  I now can now  use it for a 6 volt system . I had no instructions on this unit that is what the real problem was
    Jim  Alexander Engel  Russian typhoon  Submarine  20181215

      Current date/time is Wed Jun 26, 2019 10:54 pm
