    X craft build

    avatar
    Tom(ADMIN)
    AMS Forum Owner


    Posts : 3024
    Join date : 2010-11-05
    Age : 64
    Location : Nevada, USA

     X craft build - Page 2 Empty Re: X craft build

    Post  Tom(ADMIN) Sat Oct 12, 2013 8:07 pm

    I just wish there was something I could do you for in return, mate...
    avatar
    Tom(ADMIN)
    AMS Forum Owner


    Posts : 3024
    Join date : 2010-11-05
    Age : 64
    Location : Nevada, USA

     X craft build - Page 2 Empty Re: X craft build

    Post  Tom(ADMIN) Sun Oct 13, 2013 12:05 pm

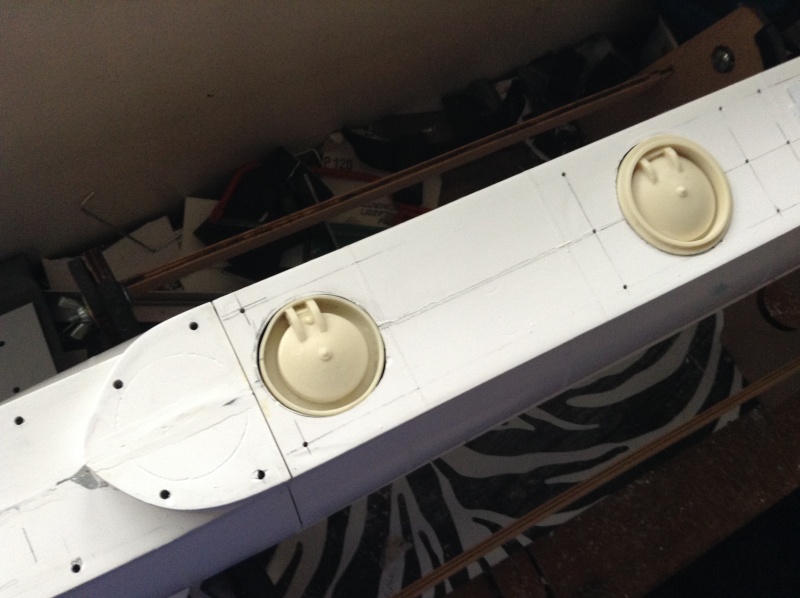

    Both hatches now fitted, spot of Andy's magic filler required here and there, but other than that..I'm happy. My hands aren't though...my right hand/wrist are now hurting badly. Time for a break and watch the MotoGP, methinks...

     X craft build - Page 2 Photo_14
    avatar
    Tom(ADMIN)
    AMS Forum Owner


    Posts : 3024
    Join date : 2010-11-05
    Age : 64
    Location : Nevada, USA

     X craft build - Page 2 Empty Re: X craft build

    Post  Tom(ADMIN) Wed Oct 16, 2013 2:09 pm

    Can't do much work on anything today, both hands are badly swollen again...this is getting ridiculous now. With due acknowledgement to Meatloaf..."Life is a lemon, and I want my money back...".

    Anyway, a quick update on the X craft...I've spoken to Debbie at Models By Design, and Andy is going to mould me a replacement front hatch, same size as the rear one, so at least both of them will be the same size, should make it look a lot better.

    I've also ordered a replacement propellor, the 35mm one looked silly, so I've ordered a 45mm one, which I'm sure is what X22 had fitted to it.

    If (IF) my hands decide to play ball later on, I want to make a start on cutting out the flood holes...it's got to be done.
    avatar
    Tom(ADMIN)
    AMS Forum Owner


    Posts : 3024
    Join date : 2010-11-05
    Age : 64
    Location : Nevada, USA

     X craft build - Page 2 Empty Re: X craft build

    Post  Tom(ADMIN) Fri Oct 18, 2013 11:35 am

    This is the Robbe periscope kit assembled and dry fitted for the time being, got a lot of sanding to do before it gets fitted properly. Looks pretty good to me...


     X craft build - Page 2 Photo_19
    avatar
    Tom(ADMIN)
    AMS Forum Owner


    Posts : 3024
    Join date : 2010-11-05
    Age : 64
    Location : Nevada, USA

     X craft build - Page 2 Empty Re: X craft build

    Post  Tom(ADMIN) Fri Oct 18, 2013 3:59 pm

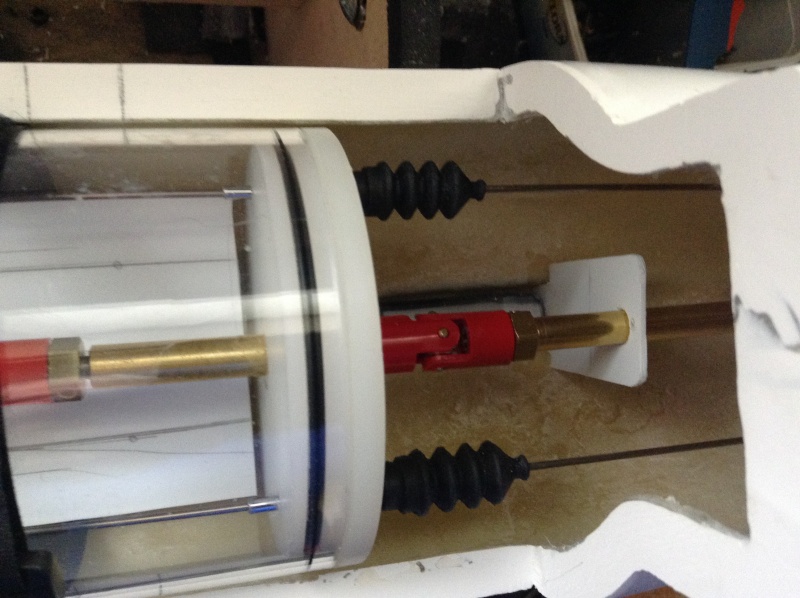

    The start of the prop shaft support, just needs a good application of epoxy to complete that job.

     X craft build - Page 2 Photo_20

    And the nice new 45mm Raboesch prop fitted, looks much better than the 35mm one I had fitted earlier.

     X craft build - Page 2 Photo_21
    tattooed
    tattooed
    AMS member


    Posts : 340
    Join date : 2011-05-16
    Age : 60
    Location : Bristol

     X craft build - Page 2 Empty Re: X craft build

    Post  tattooed Fri Oct 18, 2013 7:59 pm

    coming on at a cracking pace mate your doing a great job how long is she
    avatar
    Tom(ADMIN)
    AMS Forum Owner


    Posts : 3024
    Join date : 2010-11-05
    Age : 64
    Location : Nevada, USA

     X craft build - Page 2 Empty Re: X craft build

    Post  Tom(ADMIN) Fri Oct 18, 2013 8:18 pm

    Thanks mate, she's 41" x 4.5", nice convenient size to transport about, and supposedly 1/15th scale.
    avatar
    Tom(ADMIN)
    AMS Forum Owner


    Posts : 3024
    Join date : 2010-11-05
    Age : 64
    Location : Nevada, USA

     X craft build - Page 2 Empty Re: X craft build

    Post  Tom(ADMIN) Tue Oct 22, 2013 10:38 am

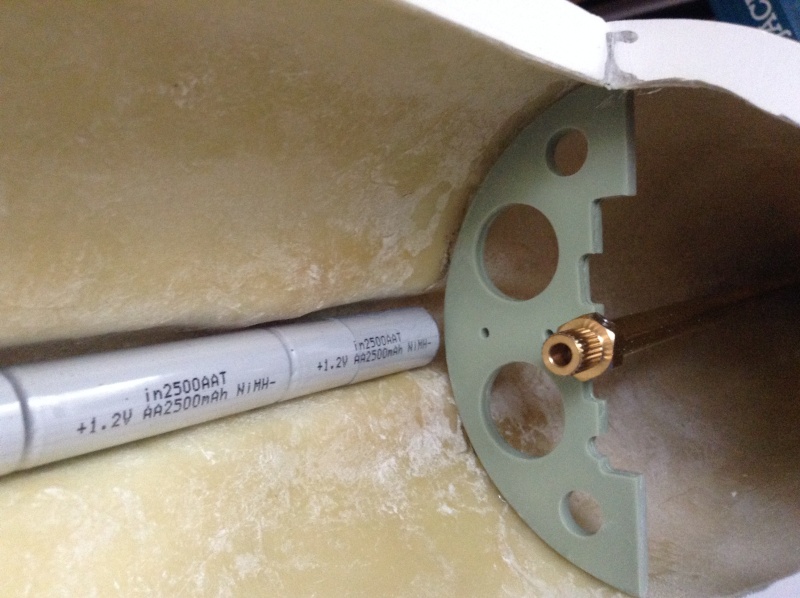

    Once again, thanks to David Merriman and his Skipjack fittings kit, I now have a prop tube support for the X craft. I think this piece was part of the torpedo tubes fittings, but seeing as how I don't have room for torpedoes in the Skipjack, it seemed a shame not to use it. It saved hours of work trying to make a support, it could have been purpose made for the X craft ...thanks David!



     X craft build - Page 2 Photo18
    avatar
    Tom(ADMIN)
    AMS Forum Owner


    Posts : 3024
    Join date : 2010-11-05
    Age : 64
    Location : Nevada, USA

     X craft build - Page 2 Empty Re: X craft build

    Post  Tom(ADMIN) Tue Oct 22, 2013 2:10 pm

    It's a bit tight and more than a bit dark in the stern section, but the picture gives you an idea of what it looks like with the prop shaft support and the cylinder in place.

     X craft build - Page 2 Photo_23

    Next little job...make up the supports to stop the equipment tray rotating in the cylinder. I've also bought myself a fancy carbide round file from eBay, so when that arrives I can commence with the worst part of the build...the flood slots.
    avatar
    Tom(ADMIN)
    AMS Forum Owner


    Posts : 3024
    Join date : 2010-11-05
    Age : 64
    Location : Nevada, USA

     X craft build - Page 2 Empty Re: X craft build

    Post  Tom(ADMIN) Wed Nov 06, 2013 5:51 pm

    I hate cylinders, it's official. The concept of installing square objects into round tubes just does not compute, it's totally alien to me. I've really tried hard to get my head around the perishing things, but to no avail.

    As soon as Andy gets back from Poland, and makes the new lip and lid for my radio box, that's what's going in the X craft...sorry David, but square things should go in square holes!
    tattooed
    tattooed
    AMS member


    Posts : 340
    Join date : 2011-05-16
    Age : 60
    Location : Bristol

     X craft build - Page 2 Empty Re: X craft build

    Post  tattooed Wed Nov 06, 2013 7:12 pm

    i'm back and you'll be able to put the square peg in the round hole soon mate
    avatar
    Tom(ADMIN)
    AMS Forum Owner


    Posts : 3024
    Join date : 2010-11-05
    Age : 64
    Location : Nevada, USA

     X craft build - Page 2 Empty Re: X craft build

    Post  Tom(ADMIN) Wed Nov 06, 2013 7:29 pm

    Welcome home, mate...hope you had an uneventful trip?

    I like square things in square places, that's where they belong!
    avatar
    Tom(ADMIN)
    AMS Forum Owner


    Posts : 3024
    Join date : 2010-11-05
    Age : 64
    Location : Nevada, USA

     X craft build - Page 2 Empty Re: X craft build

    Post  Tom(ADMIN) Thu Nov 07, 2013 12:40 pm

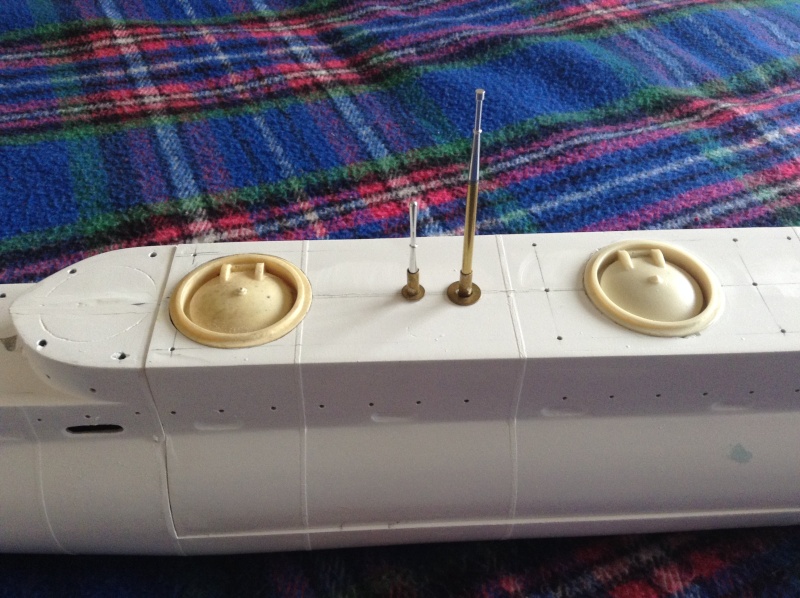

    Despite my hands not cooperating at all this morning, I've managed a couple of little jobs.

    Thanks to Andy and Debbie at Models By Design, I now have both hatches the same size...looks much better, I think. Just a drop of Andy's magic filler (our Andy) to fill the gaps and we're done with the hatches. Apart from making the operating levers, that is...

    And thanks to Malcolm at Cornwall Model Boats who managed to locate a pair of Robbe periscope kits for me, I now have both periscopes made and dry fitted.

     X craft build - Page 2 Photo_62


    (I also had a stern lecture from my carer for leaving a pile of fibreglass dust on the floor after fitting the new forward hatch...)
    tattooed
    tattooed
    AMS member


    Posts : 340
    Join date : 2011-05-16
    Age : 60
    Location : Bristol

     X craft build - Page 2 Empty Re: X craft build

    Post  tattooed Thu Nov 07, 2013 5:50 pm

    your doing a grand job there rich 'very smart indeed
    avatar
    Tom(ADMIN)
    AMS Forum Owner


    Posts : 3024
    Join date : 2010-11-05
    Age : 64
    Location : Nevada, USA

     X craft build - Page 2 Empty Re: X craft build

    Post  Tom(ADMIN) Thu Nov 07, 2013 5:55 pm

    Thanks Andy...the worst is to come though, those damn flood slots, not looking forward to that.
    avatar
    Tom(ADMIN)
    AMS Forum Owner


    Posts : 3024
    Join date : 2010-11-05
    Age : 64
    Location : Nevada, USA

     X craft build - Page 2 Empty Re: X craft build

    Post  Tom(ADMIN) Fri Nov 08, 2013 3:44 pm

    Today's little jobs were  to fit the rudders and the dive plane...I did manage to install  the rudders, but after making a start on the dive plane, my fingers said 'enough', so I had to call a halt. There's always tomorrow...

     X craft build - Page 2 Photo_66

    And yes, I know I cut away a bit too much on the top rudder, but it's nothing a sliver of styrene sheet won't cure. My fingers weren't cooperating with the razor saw...

    And this is how far I managed to get with the dive plane...the ares shaded in pencil are to be cut away.

     X craft build - Page 2 Photo_67
    profesorul
    profesorul
    Guest


    Posts : 386
    Join date : 2011-07-03
    Age : 59
    Location : Bucuresti, ROMANIA

     X craft build - Page 2 Empty Re: X craft build

    Post  profesorul Fri Nov 08, 2013 5:31 pm

    How did You Know where to cut , the right angle ?.
    avatar
    Tom(ADMIN)
    AMS Forum Owner


    Posts : 3024
    Join date : 2010-11-05
    Age : 64
    Location : Nevada, USA

     X craft build - Page 2 Empty Re: X craft build

    Post  Tom(ADMIN) Fri Nov 08, 2013 6:05 pm

    The two plane supports are actually marked with an indentation of where to cut, Marius...it's best to allow a 1/16th of an inch to allow for sanding to get a good fit.

    The dive plane I marked up by offering it up to the gap between the two rudders, allowing a good 45* up and down movement.
    salmon
    salmon
    AMS Forum Owner


    Posts : 312
    Join date : 2011-09-02
    Age : 64
    Location : Las Vegas, Nevada - USA

     X craft build - Page 2 Empty Re: X craft build

    Post  salmon Fri Nov 08, 2013 6:57 pm

    Richard, this is coming along nicely!
    Keep up the great work.


    _________________
    If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.
    avatar
    Tom(ADMIN)
    AMS Forum Owner


    Posts : 3024
    Join date : 2010-11-05
    Age : 64
    Location : Nevada, USA

     X craft build - Page 2 Empty Re: X craft build

    Post  Tom(ADMIN) Fri Nov 08, 2013 7:11 pm

    Well, thank you Tom..most kind of you. It's a slow job because of these blasted hands, but I'm getting there.
    avatar
    Tom(ADMIN)
    AMS Forum Owner


    Posts : 3024
    Join date : 2010-11-05
    Age : 64
    Location : Nevada, USA

     X craft build - Page 2 Empty Re: X craft build

    Post  Tom(ADMIN) Sun Nov 10, 2013 8:37 am

    Ballast tank made and installed...

     X craft build - Page 2 Photo_68

     X craft build - Page 2 Photo_69
    tattooed
    tattooed
    AMS member


    Posts : 340
    Join date : 2011-05-16
    Age : 60
    Location : Bristol

     X craft build - Page 2 Empty Re: X craft build

    Post  tattooed Sun Nov 10, 2013 6:43 pm

    you only having the one in the nose rich 'wont that make her heavy up front mate
    avatar
    Tom(ADMIN)
    AMS Forum Owner


    Posts : 3024
    Join date : 2010-11-05
    Age : 64
    Location : Nevada, USA

     X craft build - Page 2 Empty Re: X craft build

    Post  Tom(ADMIN) Sun Nov 10, 2013 7:17 pm

    Ah, I have a cunning plan, mate...full size X craft would often run with the stern trimmed down to give a bit more bite to the control surfaces. I'm copying Paul Cook's idea of running bows up on the surface, filling the tank to trim the bows down, then diving on the planes. I've seen Paul's boat in action, and to me it looks very scale like, so I sort of "borrowed" the idea. I am going to change the tank though to a shorter, fatter one, mounted vertically instead of horizontally, and moving it closer to the radio box...that should cut down on water sloshing about in the tank.
    avatar
    Tom(ADMIN)
    AMS Forum Owner


    Posts : 3024
    Join date : 2010-11-05
    Age : 64
    Location : Nevada, USA

     X craft build - Page 2 Empty Re: X craft build

    Post  Tom(ADMIN) Thu Nov 14, 2013 2:21 pm

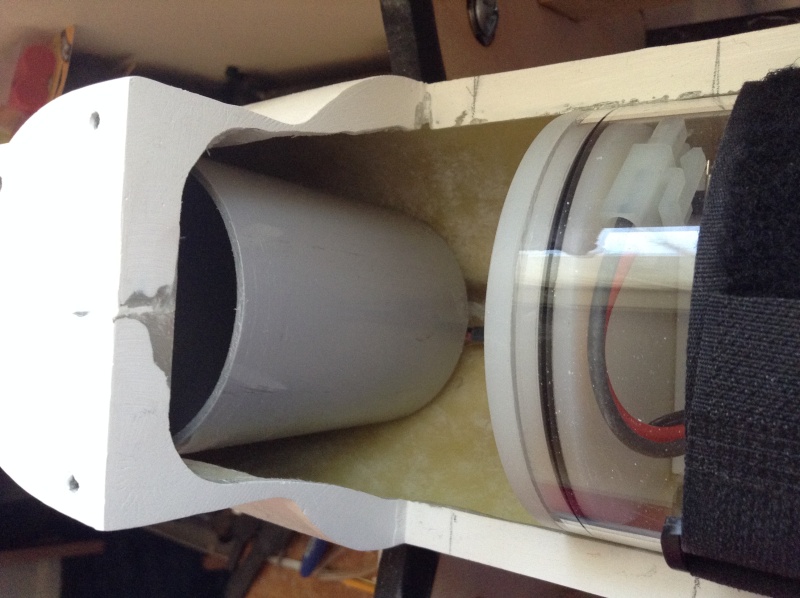

    Had to have a complete rethink on the ballast tank, tests showed that the first one was too long and too thin, and too far forward, so back to the drawing board I went. Someone on Facebook suggested short, fat and vertical may be the way to go, so this is the Mark 11 version. Shorter, fatter and vertically mounted...the weight distribution should be better too. Next job (after a nice cuppa tea!) is to knock up some caps to seal the ends and make up the inlet pipe, that will sit central in the end cap and fit in the keel.

     X craft build - Page 2 Photo_78

     X craft build - Page 2 Photo_79
    avatar
    Tom(ADMIN)
    AMS Forum Owner


    Posts : 3024
    Join date : 2010-11-05
    Age : 64
    Location : Nevada, USA

     X craft build - Page 2 Empty Re: X craft build

    Post  Tom(ADMIN) Fri Nov 15, 2013 8:05 am

    Much as I regret saying this, but that was a total disaster! It's too far forward (again!) and I can't get the tank back any further due to height restrictions under the deck, so it's back to the drawing board again.

    A shorter tank is called for, about half depth of the Mark 2...now, where's my razor saw?



    (why didn't I leave this as a dynamic dive boat.....)
